Product Inspiration:

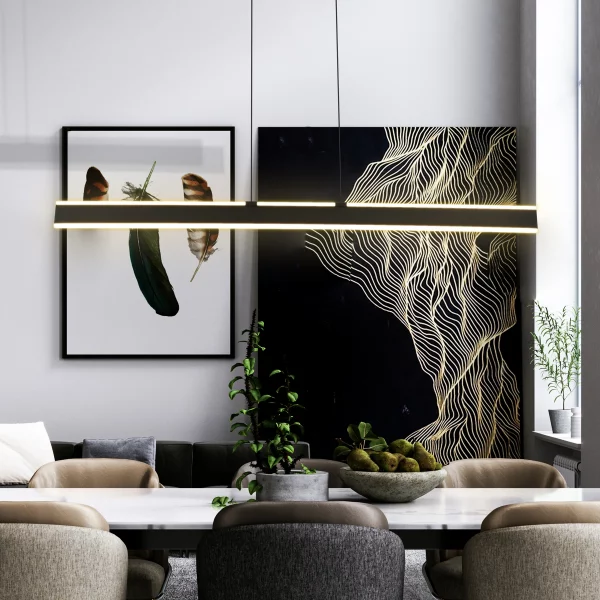

Ambience is defined by the character and atmosphere of a place. Therefore, to create mood is to be diligent with our surroundings – both objects and persons. The Wezen collection by VONN lighting speaks to this diligence, with indirect yet prominent lighting for the room.
| Installation Guide | Download |
|---|---|
| Specification Sheets | Download |
| IES Photometric File (PDF) | Download |
| IES Photometric File (IES) | Download |
Product Features:
• LED: Integrated LED fixture

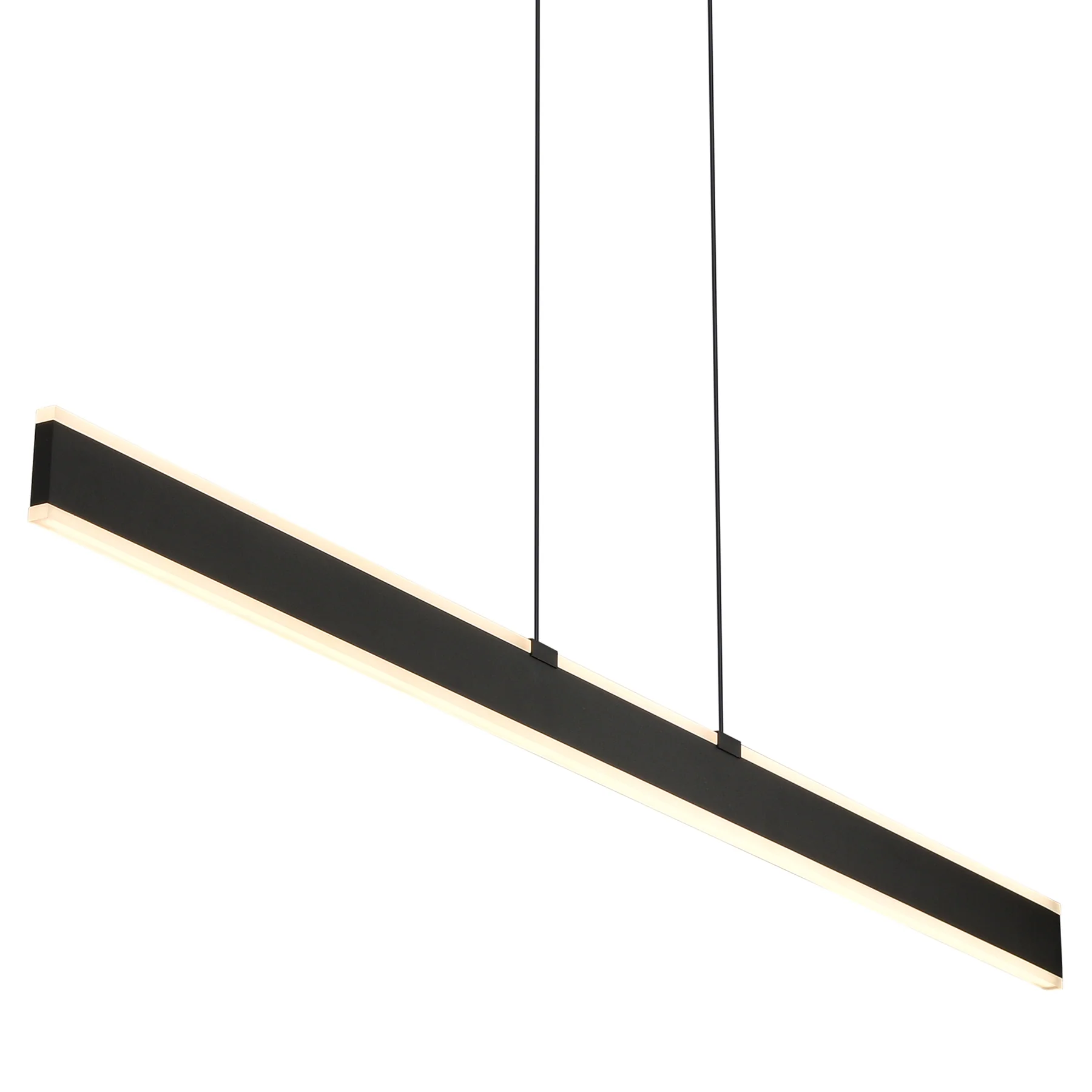

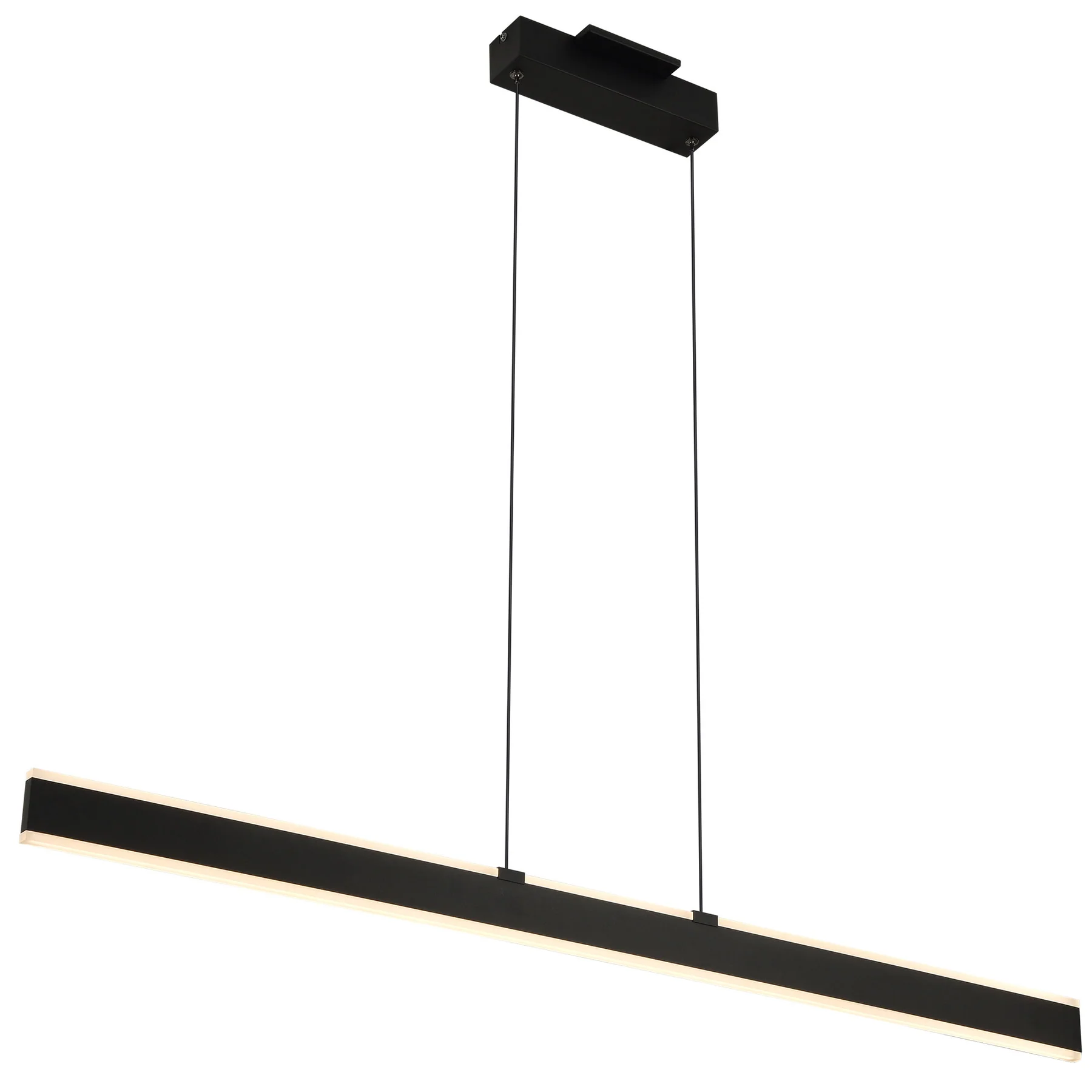

• DESIGN: 48-inch long Integrated LED Linear Chandelier in Black finish for sleek modern look
• LIGHT DIRECTION: Up and Down

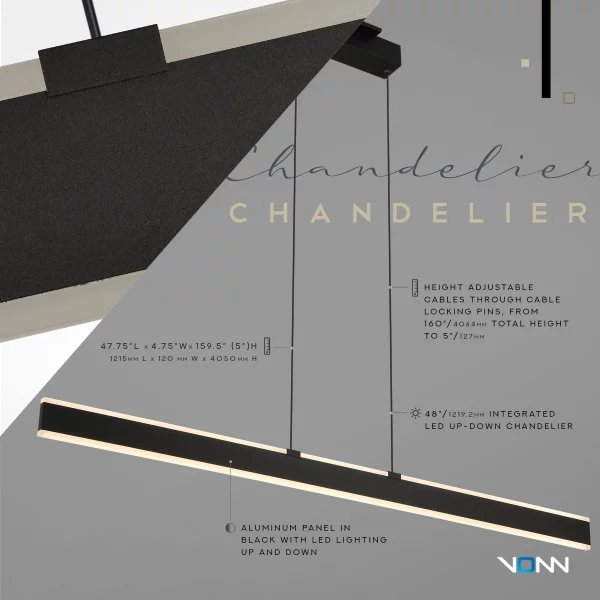

• ADJUSTABLE: Height adjustable cables through cable locking pins, from 160 inches total height to 5 inches, with each cable being adjusted induvidually
• DIMMABLE: Dimmable LED (15% – 100%) with ELV – Electric Low Voltage dimmers (Dimmer is not included with the fixture)
• ONLY compatible with ELV dimmers. Wifi, Smart, and Universal dimmers are NOT compatible
• SOFT WHITE: 3000 Kelvin color temperature
• BRIGHTNESS: 3390.90 Delivered Lumens
• EFFICIENCY: 43.54 Watts low power consumption
• CRI 90: is the highest measurement of light in relation to accuracy of color appearance

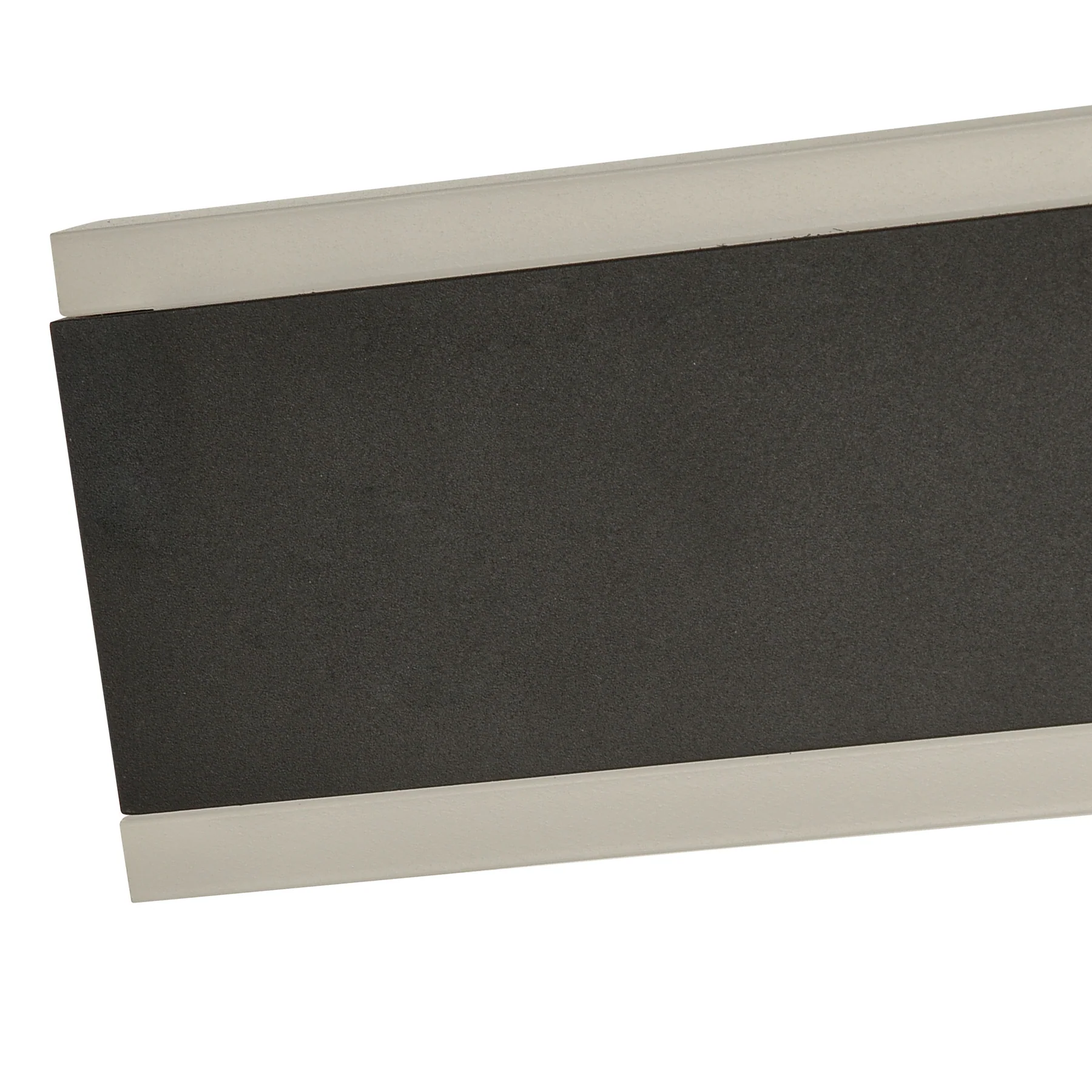

• MATERIAL: durable construction of Alumium and Acrylic with powder coated Black finish
• DRY LOCATION APPROVED: ETL listed for dry locations
• VOLTAGE: Wide input AC voltage range 100-277V 50/60Hz
• ETL Certified, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• Installer Tip: DO NOT CUT WIRES attached to the fixture under any circumstance. Excess cable should be neatly looped and tucked into the canopy
• Slanted/ Sloped Ceiling Compatible
• 5 YEAR LIMITED WARRANTY: Fixture and LED system covered under warranty period

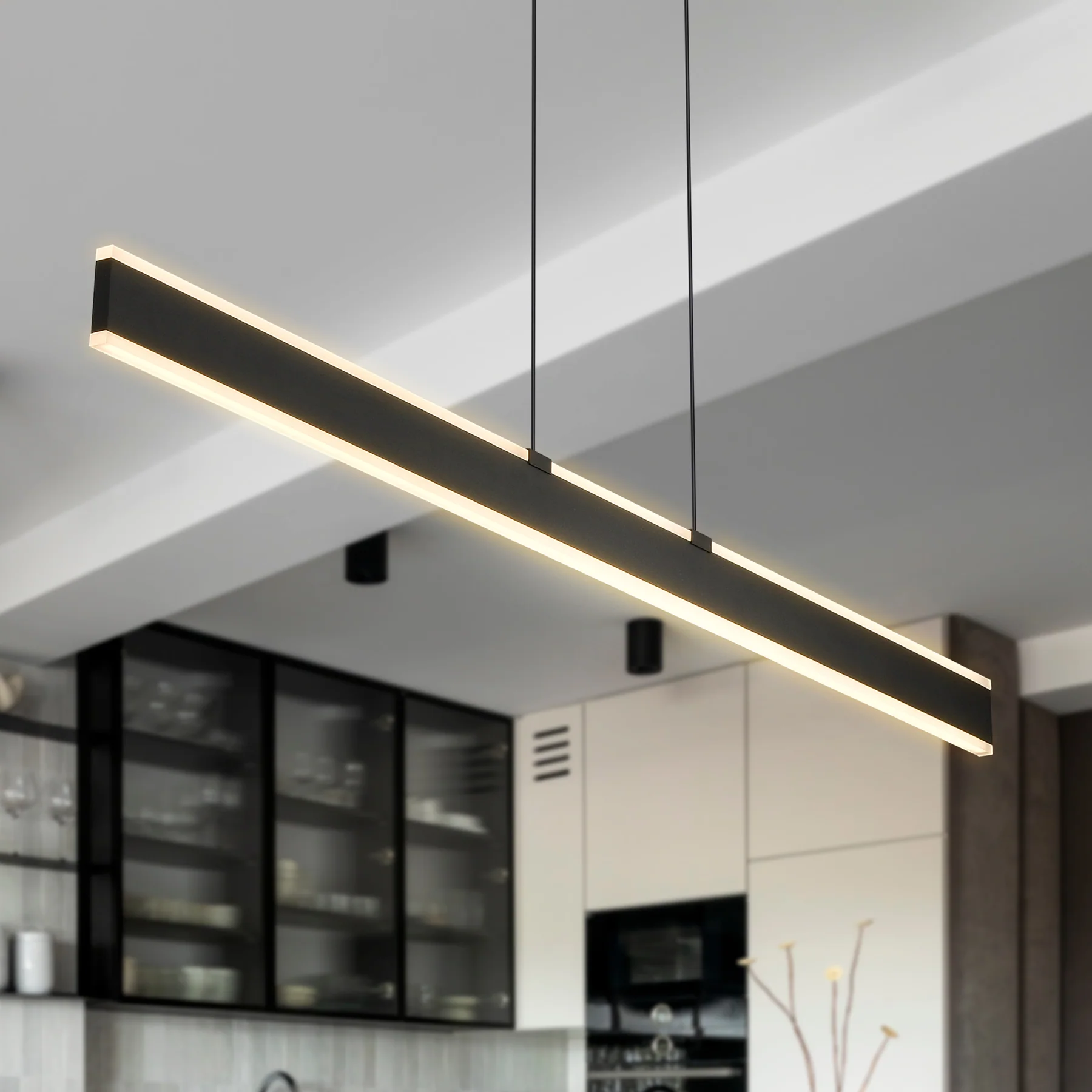

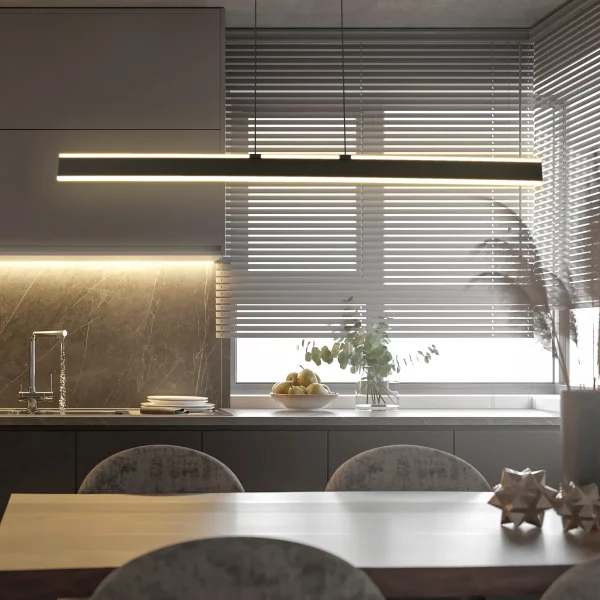

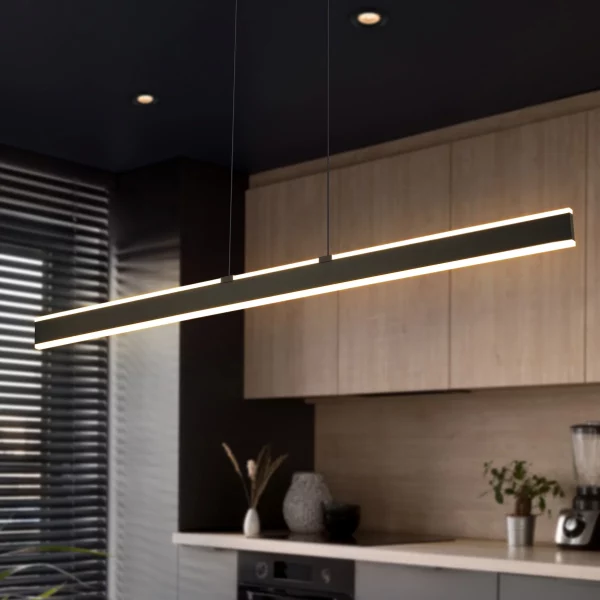

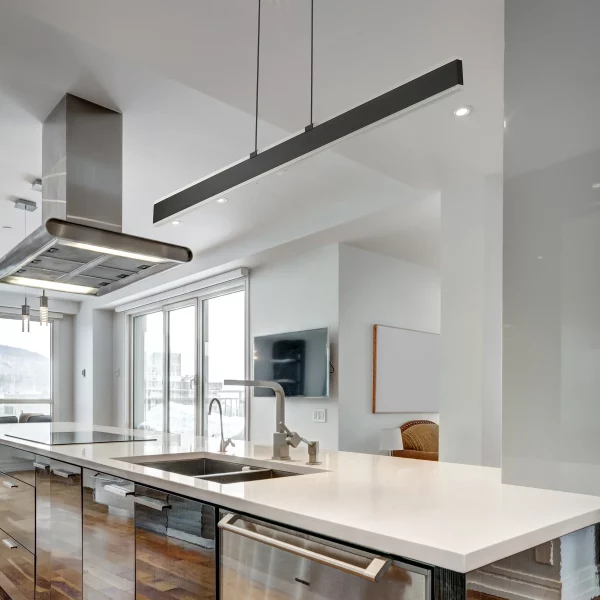

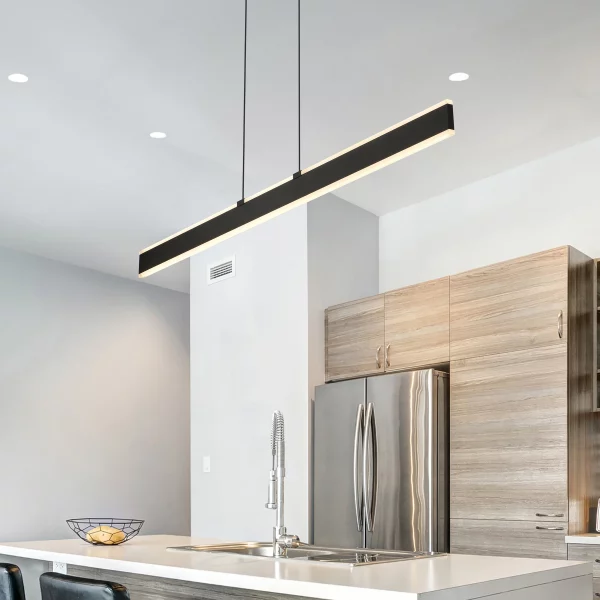

• Ideal for kitchen, dining room or suspended over a bar counter
Product Specifications:

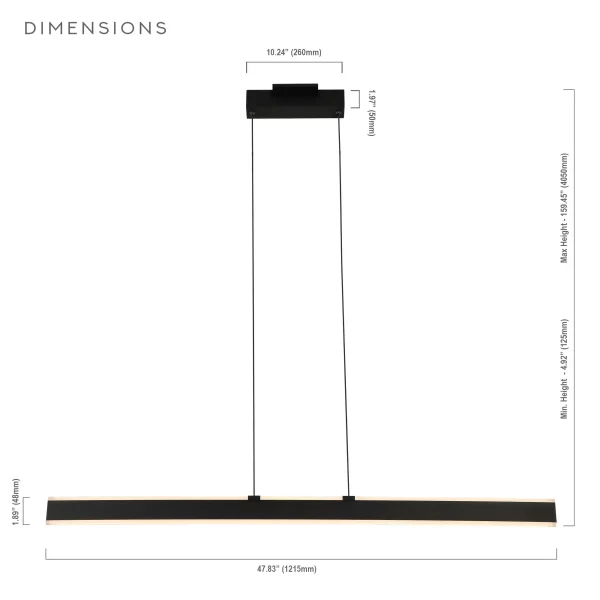

• PRODUCT DIMENSIONS: 47.75 inches L x 4.75 inches W
• OVERALL HEIGHT: minimum 5.00 inches, maximum 159.50 inches

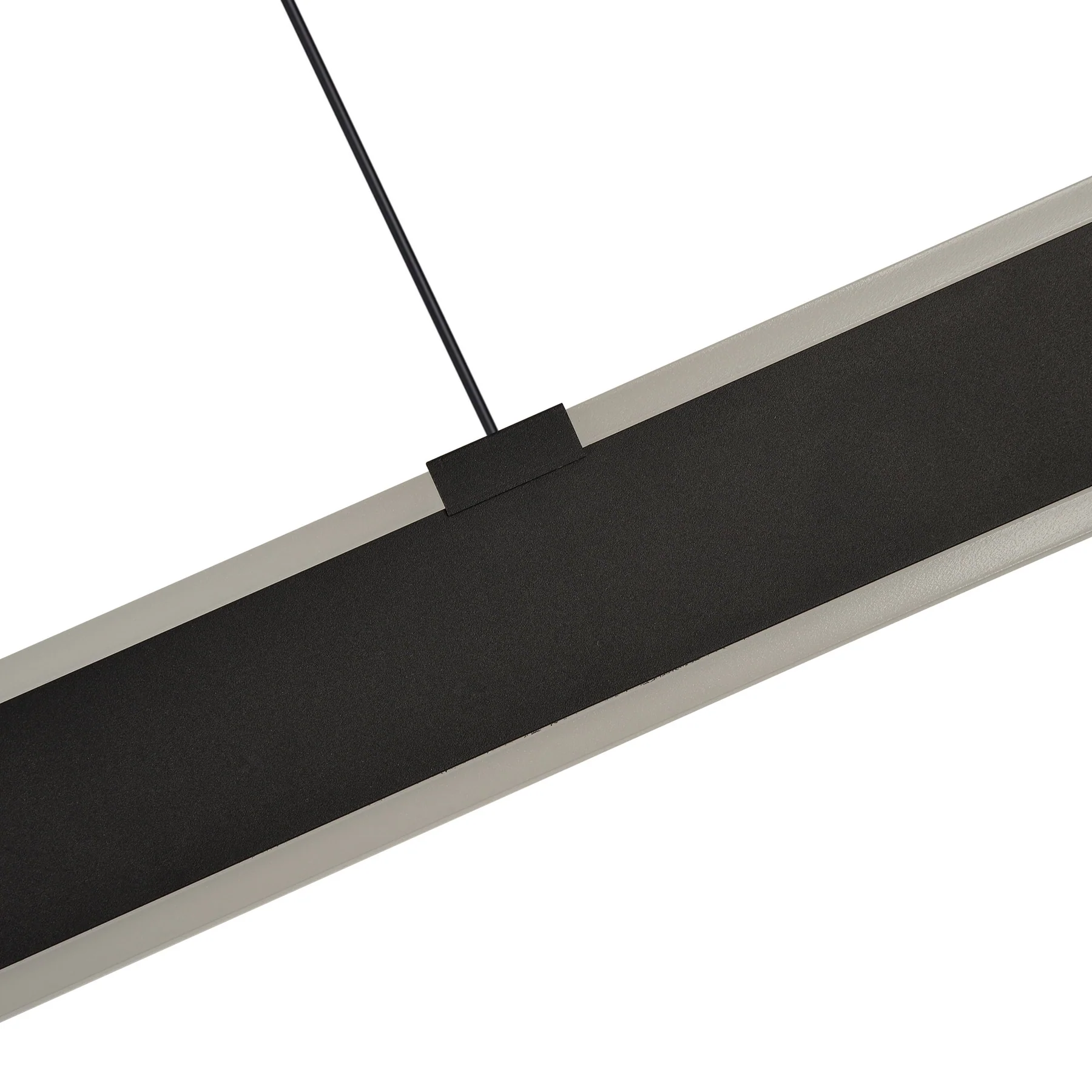

• PLANK DIMENSIONS: 47.75 inches L x 0.5 inches W x 2.5 inches H

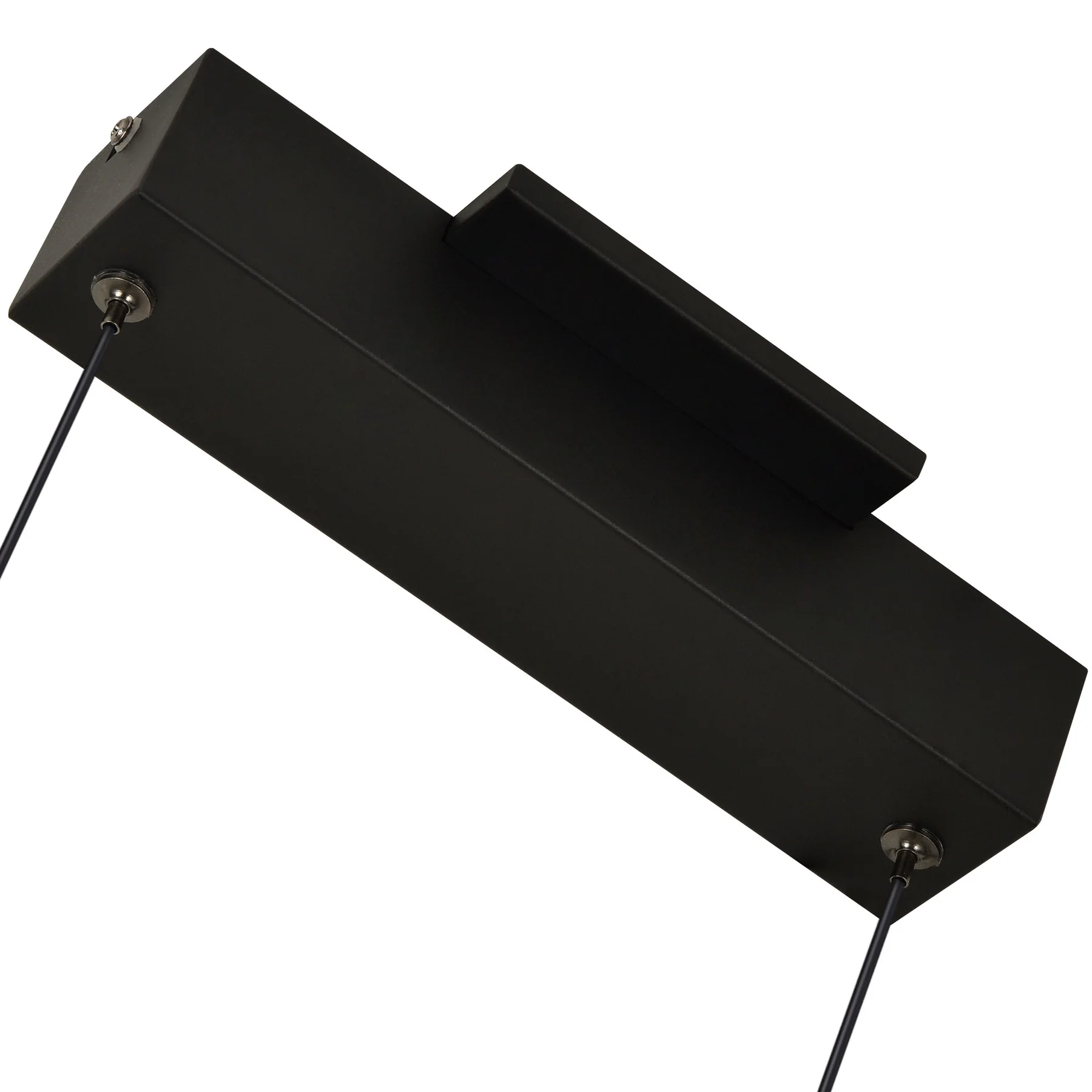

• CANOPY DIMENSIONS: 10.25 inches L x 4.75 inches W x 2 inches H
• WIRE LENGTH: 155 inches
• PRODUCT WEIGHT: 4.6 Lbs.
• For the exact dimensions please refer to the PDF Specification Sheet
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
