Features

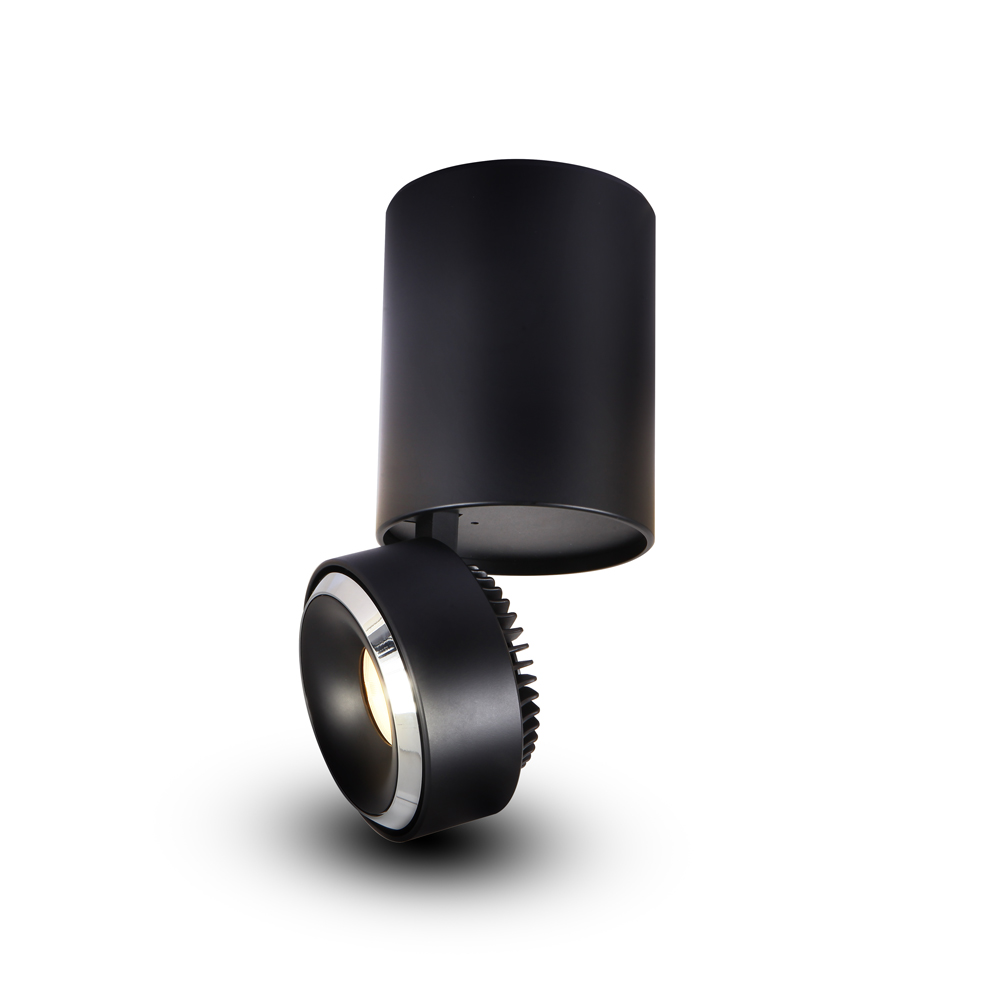

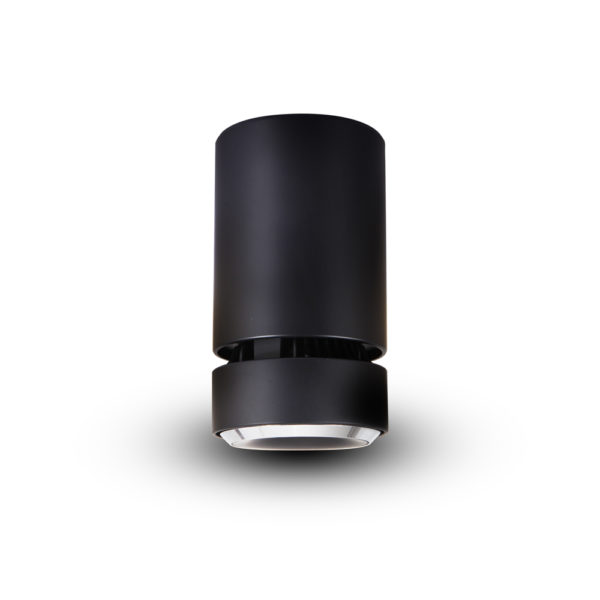

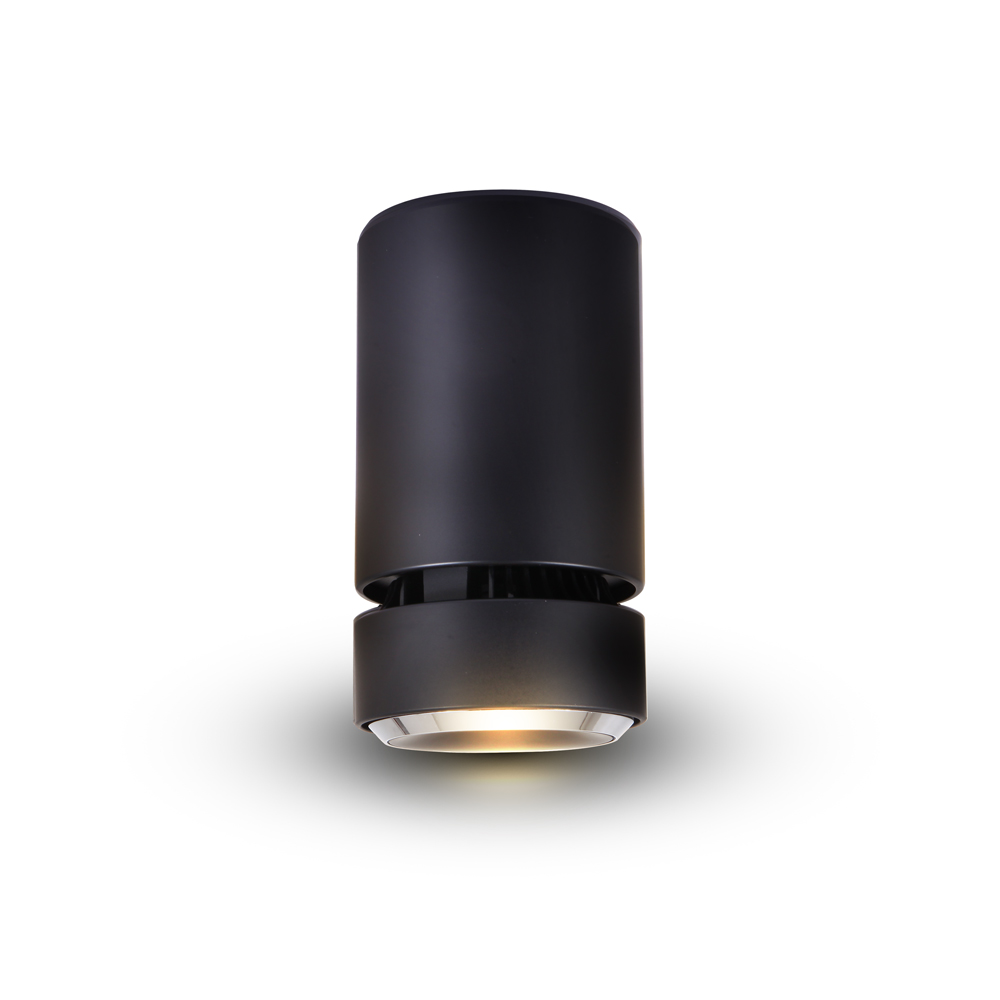

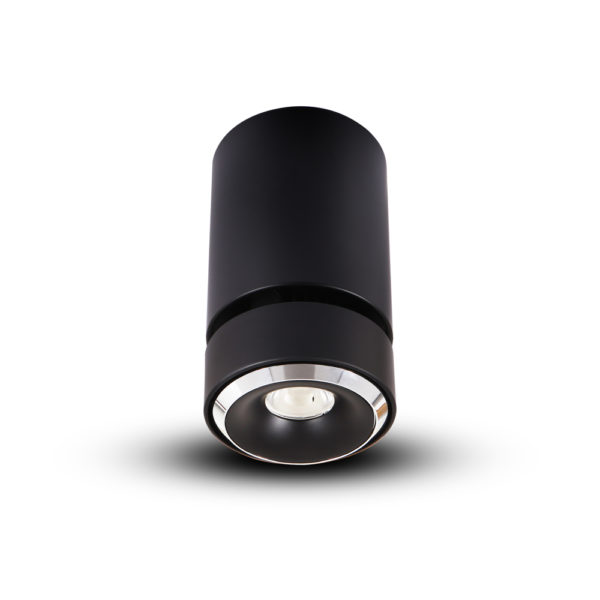

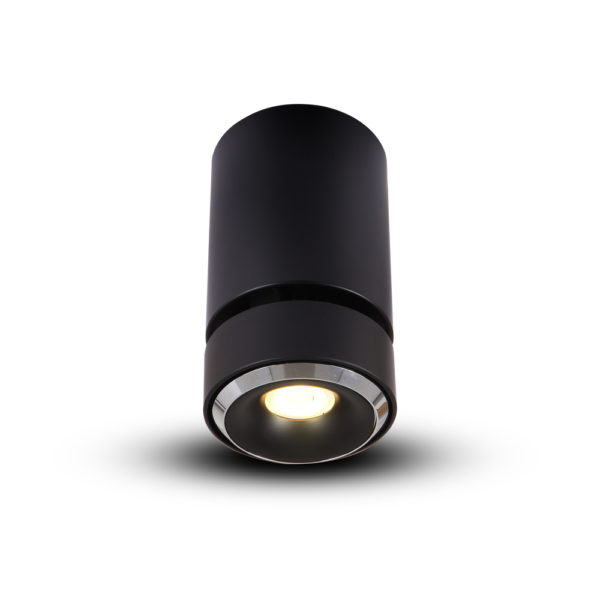

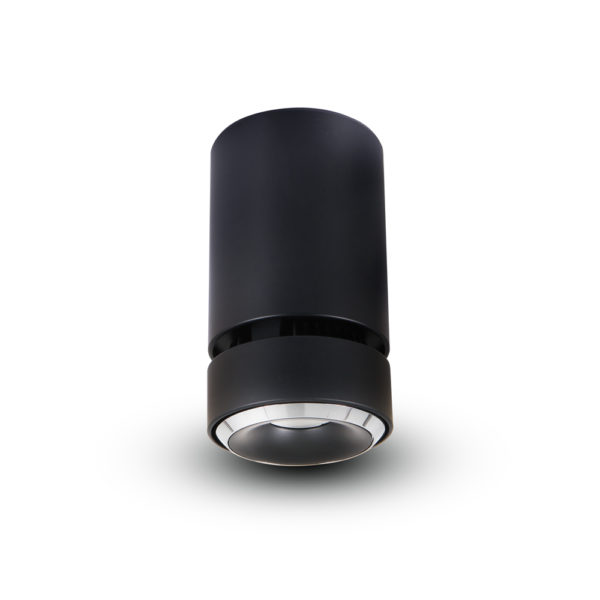

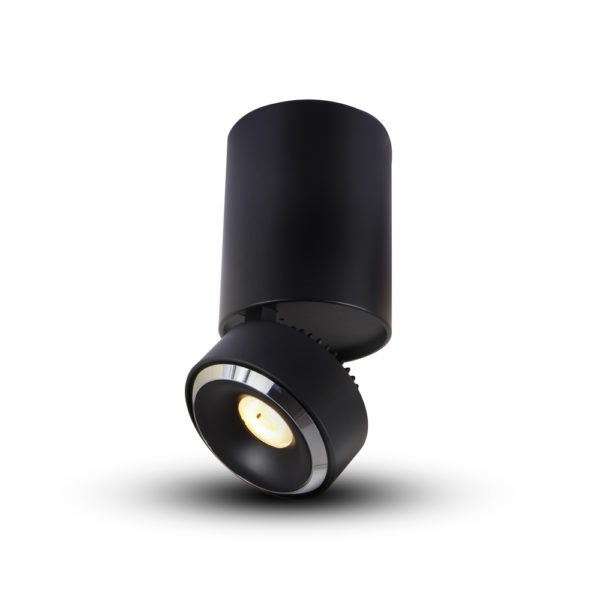

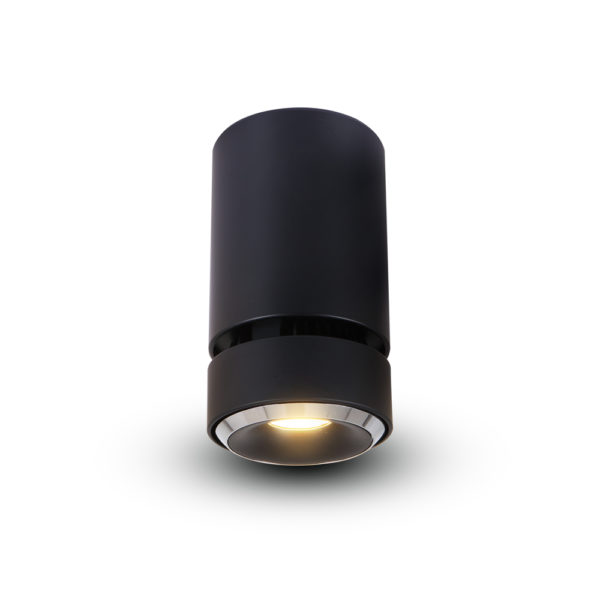

LED Surface mounted adjustable downlight, ORBIT Series
• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted
• IC Rated

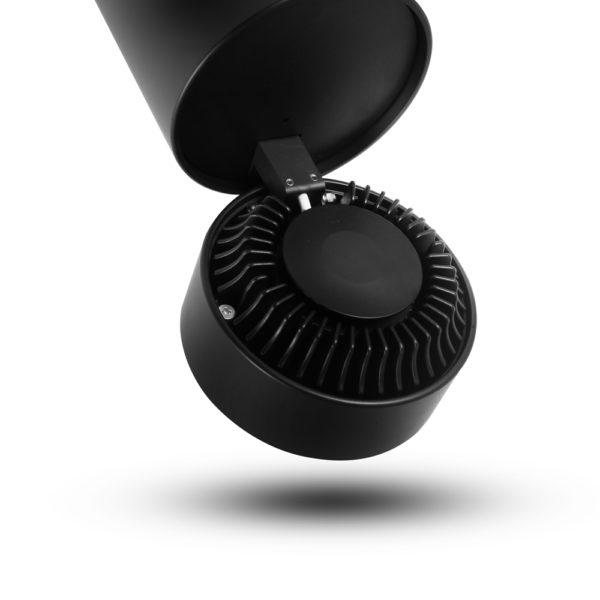

• Adjusts 350° left – right, adjusts 90° up – down
• OVERALL DIMENSIONS: 4.25″ Diameter x 7.75″H
• CANOPY DIMENSIONS: 4.25″ Diameter x 5.5″H
• LIGHT HEAD DIMENSIONS: 4.25″ Diameter x 2.25″H
• HOLE SIZE: 0.59″ Diameter
• LENS BEAM ANGLE: offered in 3 beam angles 12° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1877.85 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
