Features

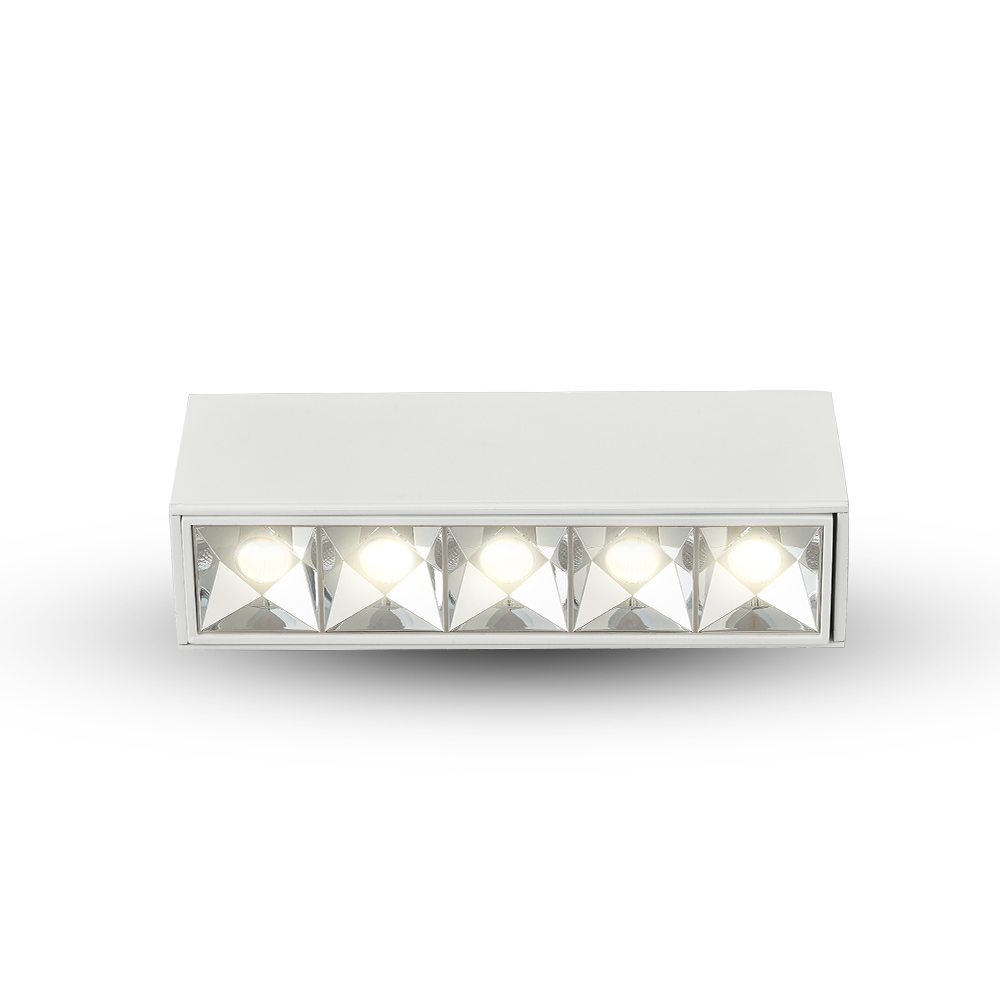

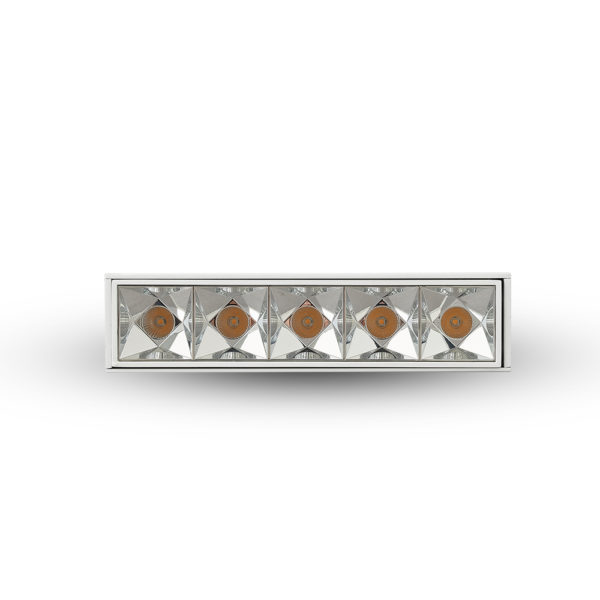

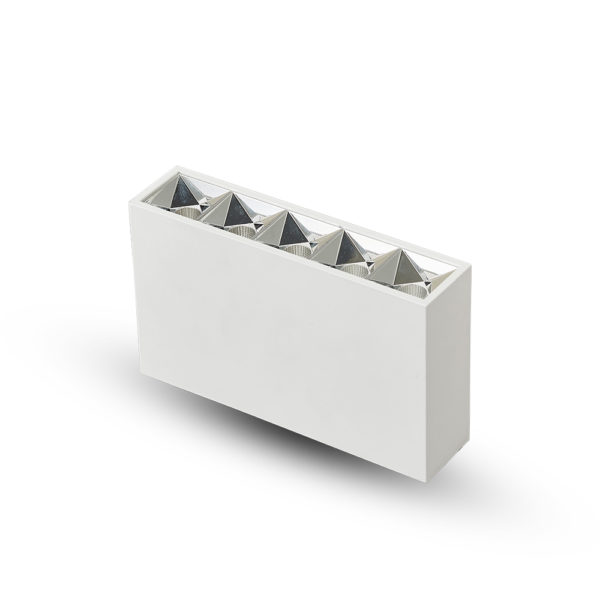

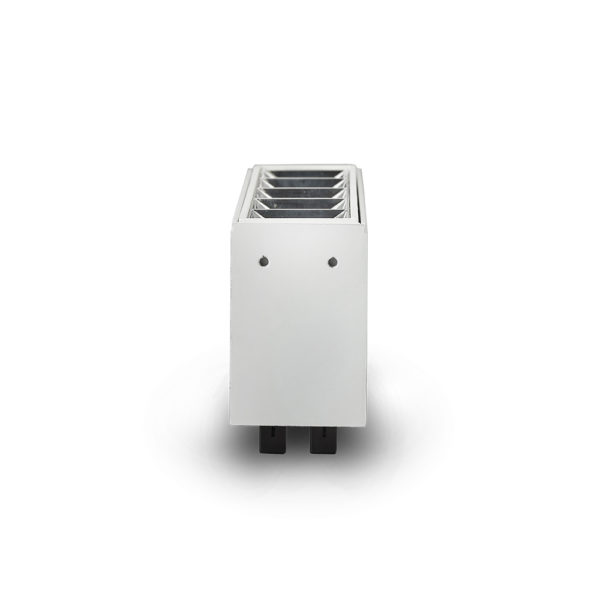

LED Fixed surface mounted downlight, RUBIK Series
• Aluminum body structure available in White finish
• Integrated LED 5-spot fixture, surface mounted
• IC Rated
• DIMENSIONS: 6.25″L x 1.5″W x 3.75″H
• HOLE SIZE: 0.59″ Diameter
• LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° & 48°(special order required), 34°(stock beam angle)
• STOCK BEAM ANGLE: 34°
• DIMMABLE: 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 755.52 Lumens
• WATTAGE: 12W
• VOLTAGE: 100-277V
• CRI 90
• IP Rate: IP20
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty
***THE MEASUREMENTS ARE ROUNDED TO THE NEAREST 1/4″***
